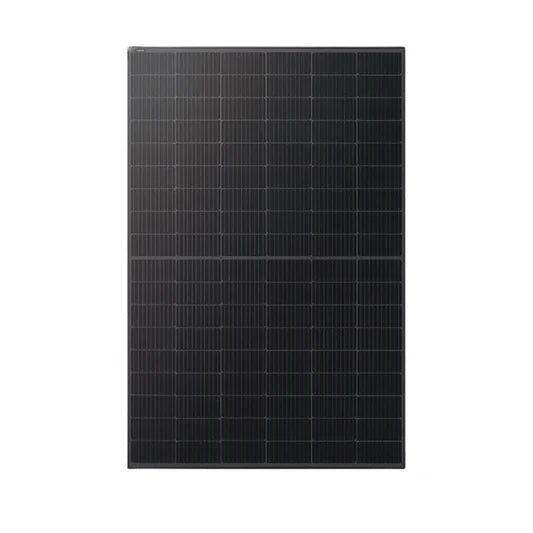

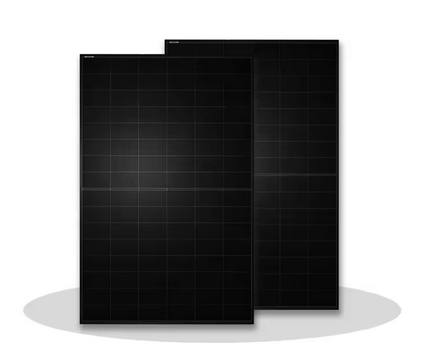

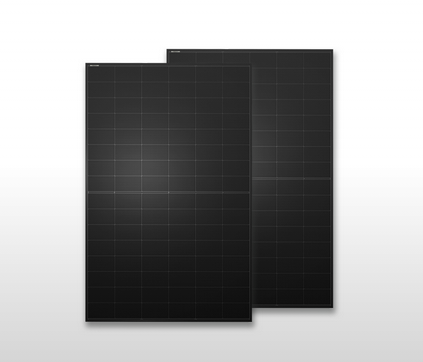

Bluesun 460W Bifacial Half-Cell Solar Panel
Bluesun 460W Bifacial Half-Cell Solar Panel
Couldn't load pickup availability
Upgrade your solar setup with one of Bluesun’s most efficient and durable panels. This 460W N-Type TOPCon module is designed to deliver high performance in real-world conditions — even during cloudy weather, low light, or high temperatures.
Because it’s bifacial, it can also generate extra energy from the rear side, boosting total yield when installed above reflective surfaces (tiles, concrete, grass, white ground, gravel, etc.).
It’s an excellent choice for homeowners, commercial systems, off-grid cabins, battery/hybrid inverters, and anyone who wants maximum kWh per panel with long-term reliability.
🔧 Key Advantages
• High power rating: 460W output
• Advanced N-Type TOPCon cells (higher efficiency, slower degradation)
• Bifacial design (up to ~80% rear-side gain depending on installation)
• 108 M10 half-cells for lower resistance and improved performance
• Excellent output in low-light / cloudy conditions
• Very low annual degradation (0.4%/year)
• Superior temperature behaviour compared to P-Type modules
• Dual-glass construction for strength and long lifespan
• Built to withstand harsh weather (snow, wind, salt mist)
⚡ Electrical Specifications (STC)
• Maximum Power (Pmax): 460W
• Voltage at Maximum Power (Vmp): 33.01V
• Current at Maximum Power (Imp): 13.98A
• Open-Circuit Voltage (Voc): 39.62V
• Short-Circuit Current (Isc): 14.72A
• Module Efficiency: 23.56%
🔋 Electrical Specifications (NMOT)
• Power Output: 348W
• Voltage at Maximum Power: 30.62V
• Current at Maximum Power: 11.40A
• Open-Circuit Voltage: 37.52V
• Short-Circuit Current: 11.85A

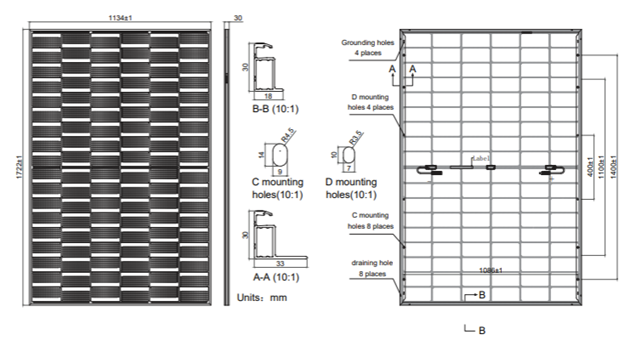

🧱 Mechanical Specifications
• Cell Type: N-Type TOPCon, M10 (182mm)
• Cell Layout: 108 half-cells (6×18)
• Dimensions: 1722 × 1134 × 30 mm
• Weight: 24 kg
• Front Glass: 2.0 mm tempered, AR-coated, high-transmittance
• Rear Glass: 2.0 mm tempered, high-transmittance
• Frame: Anodized aluminium alloy
• Junction Box: IP68, 3 bypass diodes
• Connectors: Stäubli MC4-EVO2
• Cable Length: +400 mm / –200 mm or ±1200 mm
• Cable Size: 4 mm² (TÜV) / 12AWG (UL)
🌡️ Operating Conditions
• Maximum System Voltage: 1500V DC
• Operating Temperature: –40°C to +85°C
• Maximum Series Fuse: 30A
• Mechanical Load (Snow): 5400 Pa
• Mechanical Load (Wind): 2400 Pa
• Safety Class: Class II
• NMOT: 45 ± 2°C
📉 Temperature Coefficients
• Pmax: –0.30% / °C
• Voc: –0.25% / °C
• Isc: +0.046% / °C
📜 Certifications & Warranty
• IEC 61215 / IEC 61730 / CE / TÜV
• Manufactured under ISO 9001 / 14001 / 45001
• Product Warranty: 12 years
• Linear Performance Warranty: 30 years
• Annual Degradation: Max 0.4%
🎯 Ideal Applications
• Residential rooftops
• Commercial & industrial buildings
• Off-grid cabins and remote systems
• Hybrid inverters & battery storage setups
• Ground-mounted installations
• Bifacial-optimised arrays (reflective ground)
** model BSM460M10-54HNH
**Limited introductory price – while stock lasts
**Price is final and inclusive of VAT
