HEATAEROSOL QRRO.01G/S-CFLC – Automatic Aerosol Fire Extinguishing Device

HEATAEROSOL QRRO.01G/S-CFLC is a compact automatic aerosol fire extinguishing device intended for protection of enclosed spaces and electrical cabinets, according to the applicable technical documentation and installation instructions.

The device is designed for mounting with a 3M VHB adhesive pad on a suitable surface inside an electrical cabinet.

Technical specifications

• Model: QRRO.01G/S-CFLC
• Operating temperature: -50 °C to +90 °C
• Service life: 10 years
• Extinguishing agent density: 100 g/m³
• Casing surface temperature: ≤200 °C
• Thermal clearance: 0.3 m at ≤75 °C; 0.12 m at ≤200 °C; 0.05 m at ≤400 °C
• Activation: automatic; the device label states activation in the presence of open flame / at approximately 170 °C
• Standards stated on the device: EN 15276-1:2019 and EN 15276-2:2019
• Manufacturing date of this photographed unit: 2025/12

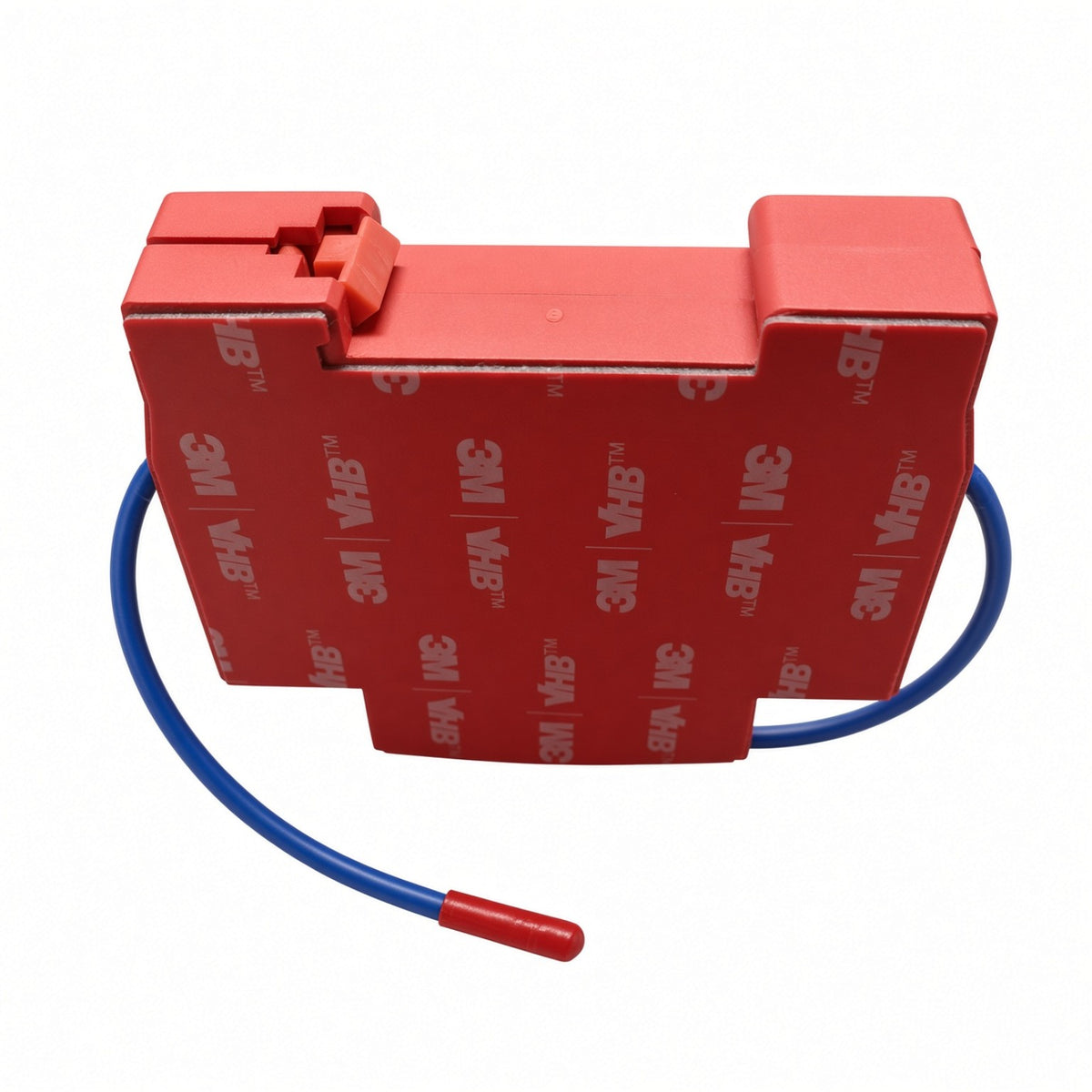

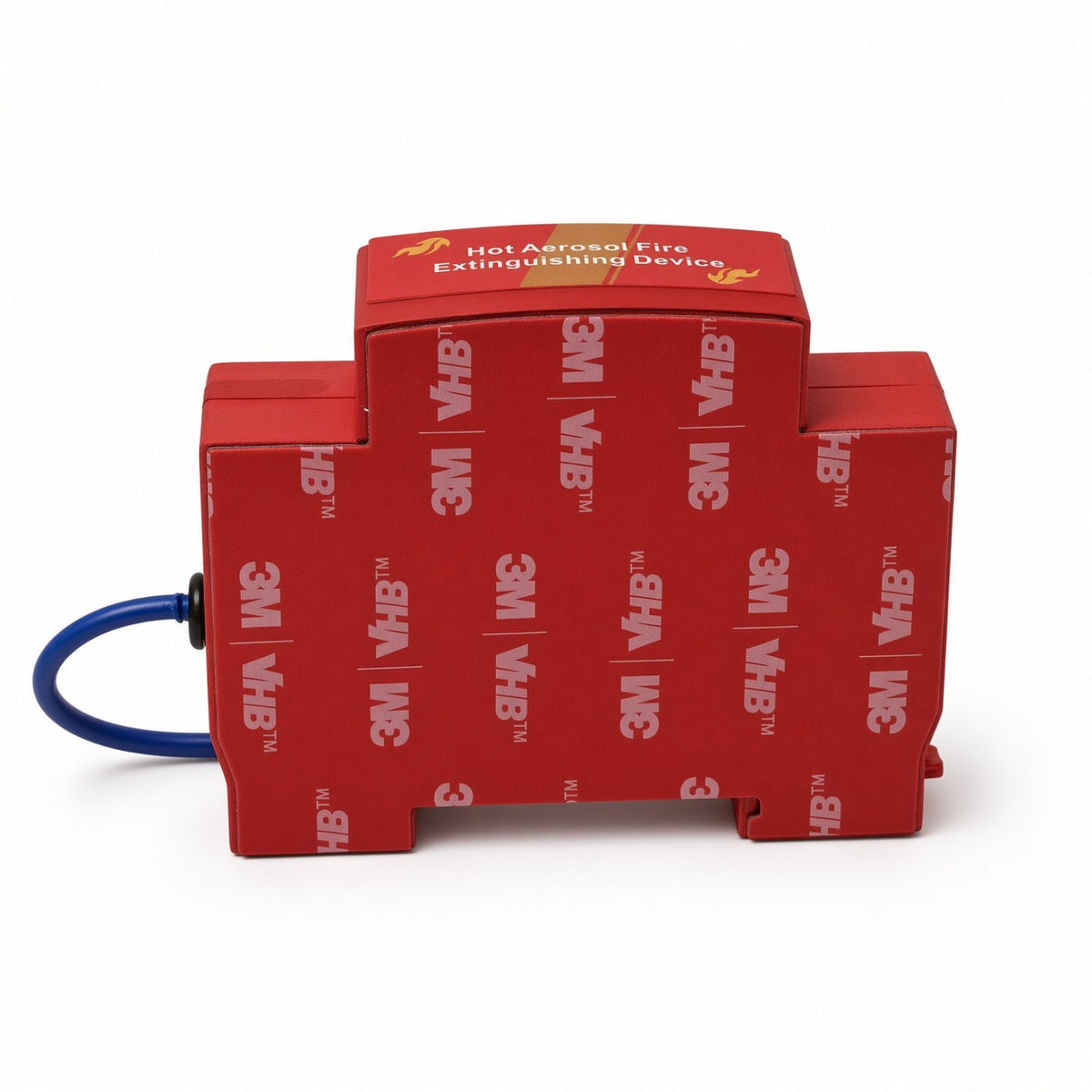

• Mounting: 3M VHB adhesive pad

Important information

• After activation, do not touch the device until the casing has cooled down.
• Do not open the device without appropriate professional authorization.
• Installation and use must follow the manufacturer’s instructions and applicable safety requirements.
• The technical information on this page is based on the marking on the photographed device. Before professional installation, verify the original manufacturer documentation and product certification.

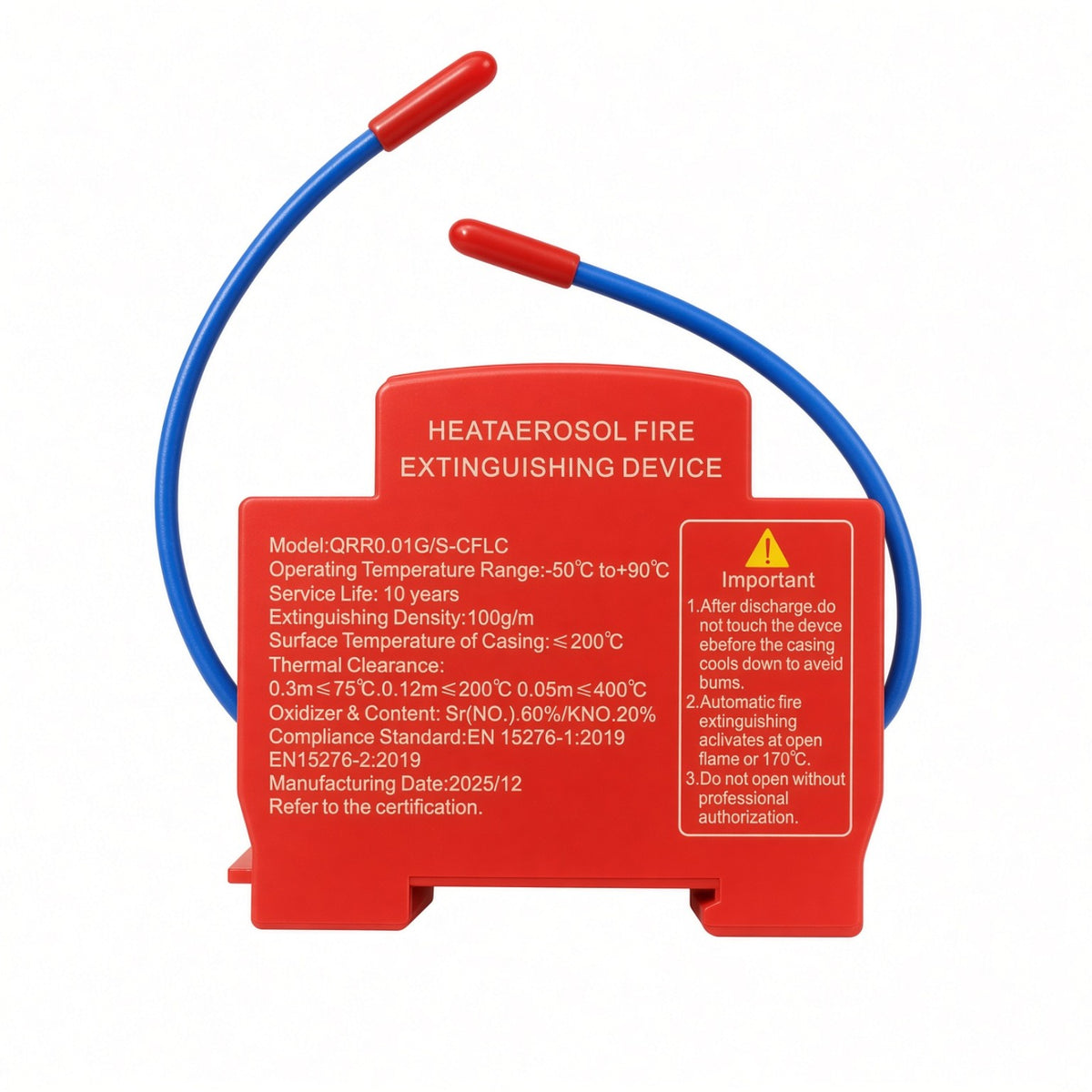

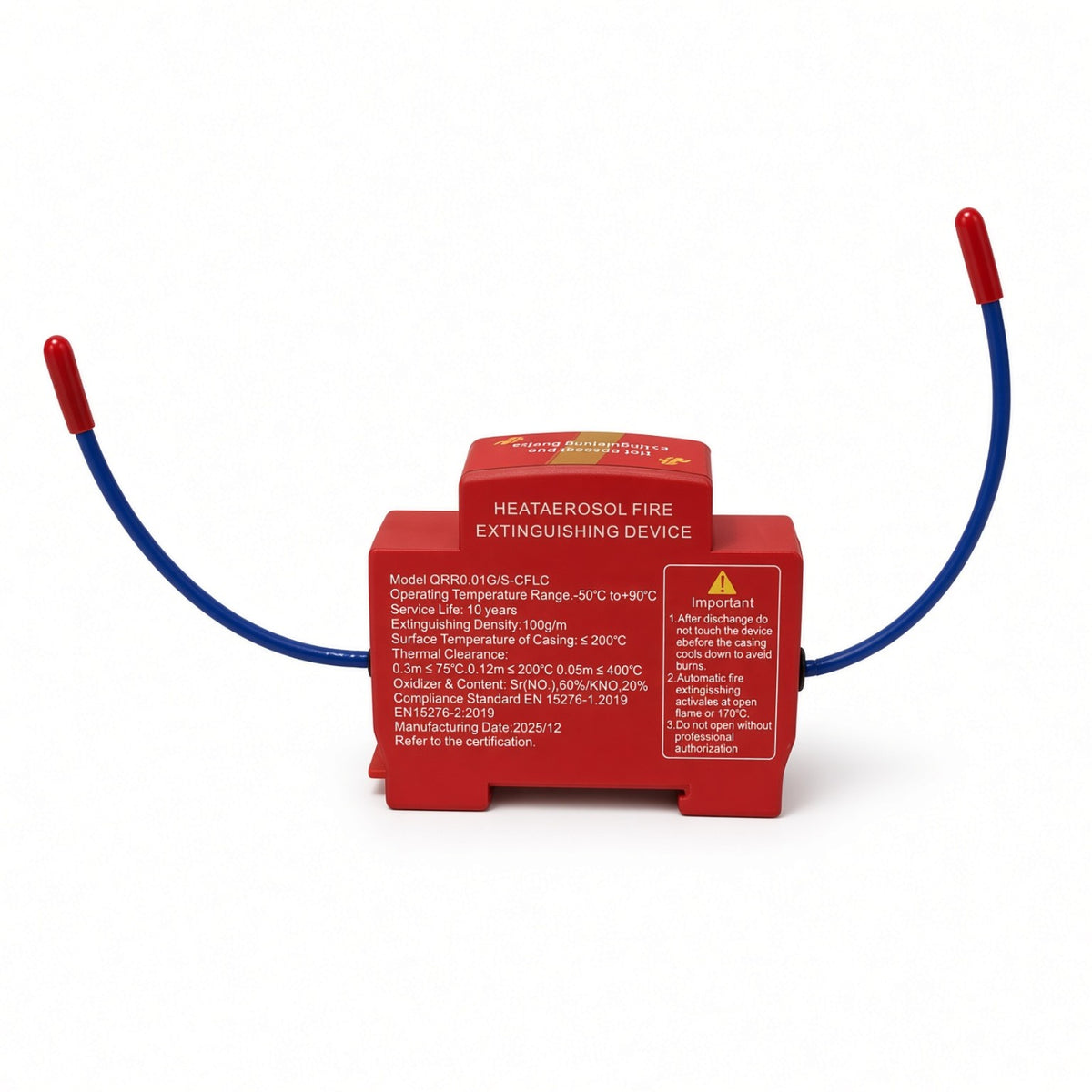

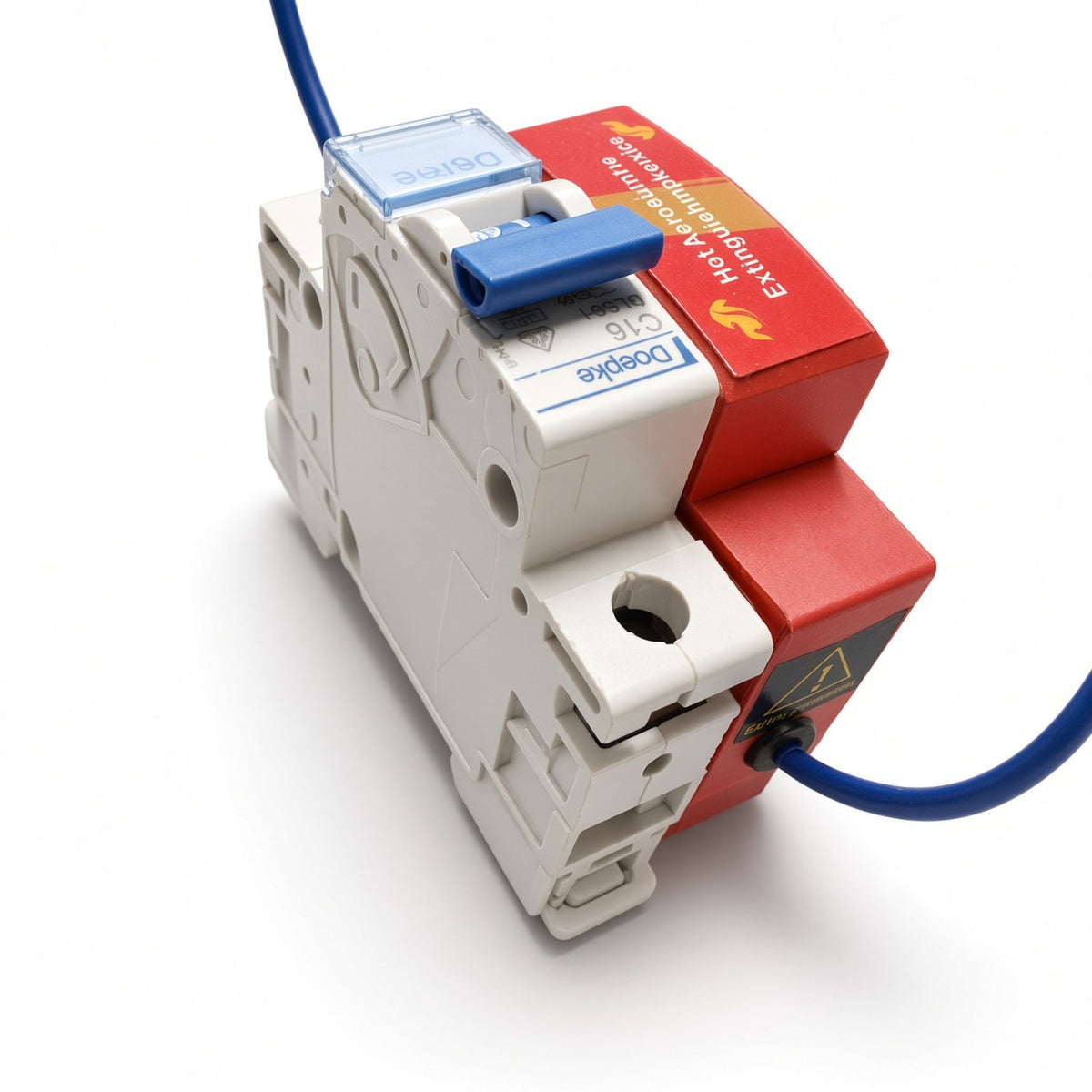

Note: The photos show the actual product and an example of placement next to miniature circuit breakers. The installation photo is for illustration only and does not replace the manufacturer’s installation instructions.
